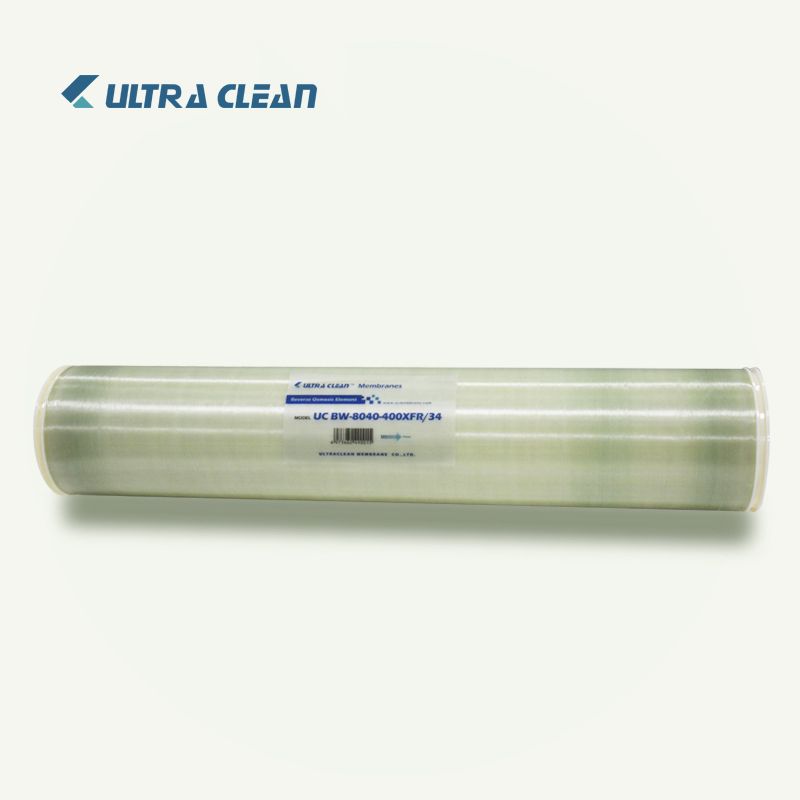

Home / Products / Reverse Osmosis Membrane Elements / Brackish Water (BW) / BWRO Membrane Extra Fouling Resistance Series BW-8040-400XFR/34
BW RO membrane elements are mainly used for brackish water desalination. They provide excellent, stable and consistent membrane performance for industrial water treatment systems.
UltraClean XFR series reverse osmosis membranes are manufactured by optimizing the formula, reaction conditions and post-treatment, the membrane skin layer is denser and more hydrophilic, the membrane surface is smoother, the membrane element structure is optimized, and the membrane products are produced with high-quality materials. Effectively purify raw water prone to biological pollution and organic pollution. UltraClean XFR series originals all use the latest diaphragm preparation technology, making their resistance to organic contamination and cleanability up to the industry standard, providing membrane elements with excellent anti-pollution ability and super durability for the difficult water treatment industry. The UltraClean XFR series is available in 8-inch and 4-inch sizes for systems with poor inlet water quality.
Advanced membrane technology with innovative thin layer composite membrane design.
More consistent performance with less fouling requiring less frequent cleaning and change-outs.
100% dry-stored membrane maximizing shelf life.
Membrane Performance Specification
|Active Area ft²（m²）||400（37）|
|Permeate Flow Rate GPD（m³/d）||10500（40）|
Test conditions: inlet pressure 1.55 MPa (225 psi); inlet temperature 25°C (77°F); inlet water quality 2000ppm NaCl; inlet pH 8; recovery 15%.
Permeate flow for individual elements may vary ±15 percent from the value specifed.
Active membrane area guaranteed ±4%.
Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.
|A inch(mm)||B inch(mm)||C inch(mm)|
|40 (1016)||1.125 (29)||7.9 (201)|
Operating and Cleaning Limits
|Maximum Operating Pressure||41 bar (600 psi)|
|Maximum Operating Temperature||45°C (113°F )|
|Maximum Element Pressure Drop||1.0 bar (15psi)|
|pH Range Continuous Operation||2-11|
|pH Range Short-Term Cleaning||1-13|
|Maximum Feed SDI(SDI15)||5.0|
|Free Chlorine Tolerance||< 0.1 ppm|
1.Are you a manufactuere or trading company?
We are 100% manufacturer of RO and NF membranes which could help you get products with best quality and price from factory directly.
2.Where is your company factory?
Our Production Headquarter located in New Material Industrial Park, High-tech Zone, Ankang City, Shaanxi Province. Besides, our marketing center is located in Tiancheng Building, Xiangcheng District, Suzhou city, Jiangsu Province. The second factory here is now under construction, will be finished next year, welcome to visit!
3.How is the quality of your products?
We promise three-years quality warranty and will implement it in the form of a contract.
4.Do you support sample order?
Yes, we always support free sample to help our clients check the quality, but we do not bear the shipping cost.
5.Do you support OEM?
Yes, we support OEM service and welcome you to customize our products.
6.How long time usually your products to ship?
15 to 30 days, depends on the distance.
