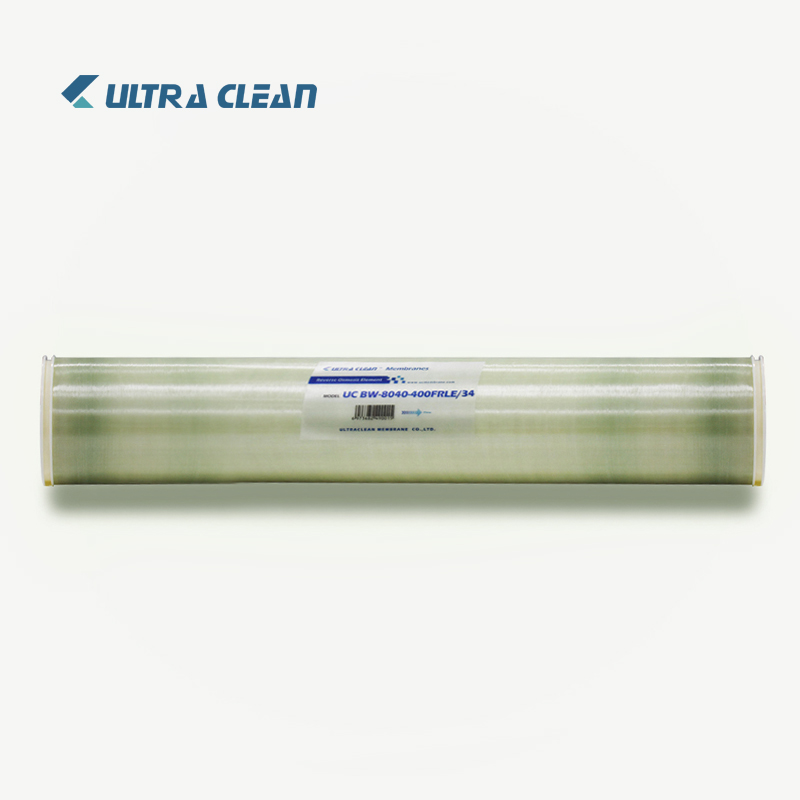

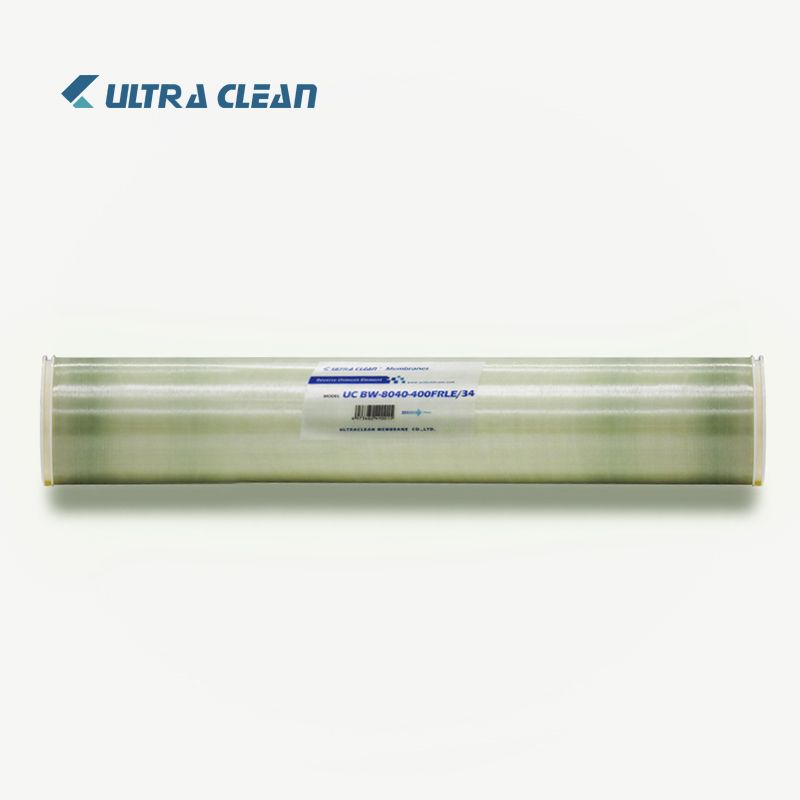

UltraClean FRLE series reverse osmosis membrane elements have extremely strong anti-fouling performance and low energy consumption performance. The membrane elements are developed for the treatment of low-quality feed water with a high tendency for biological or organic pollution. Its operating pressure is 30% lower than that of ordinary brackish water reverse osmosis membrane elements, the energy consumption is reduced by about 1/3, and the stable desalination rate can reach 99.3%. The anti-pollution low-energy series is available in 8-inch and 4-inch sizes.
1.It can effectively reduce the energy consumption of membrane system operation, and the system operation is economical.
2.Good pollution resistance, high pollution influent water quality
Membrane Performance Specification
|Active Area ft²（m²）||400（37）|
|Permeate Flow Rate GPD（m³/d）||11500（44）|
Test conditions: inlet pressure 1.03 MPa (150 psi); inlet temperature 25°C (77°F); inlet water quality 2000ppm NaCl; inlet pH 8; recovery 15%.

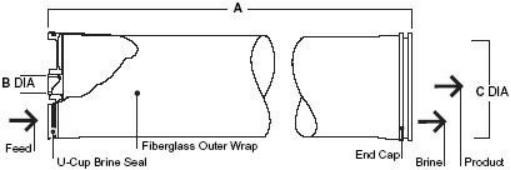

|A inch(mm)||B inch(mm)||C inch(mm)|
|40 (1016)||1.125 (29)||7.9 (201)|
