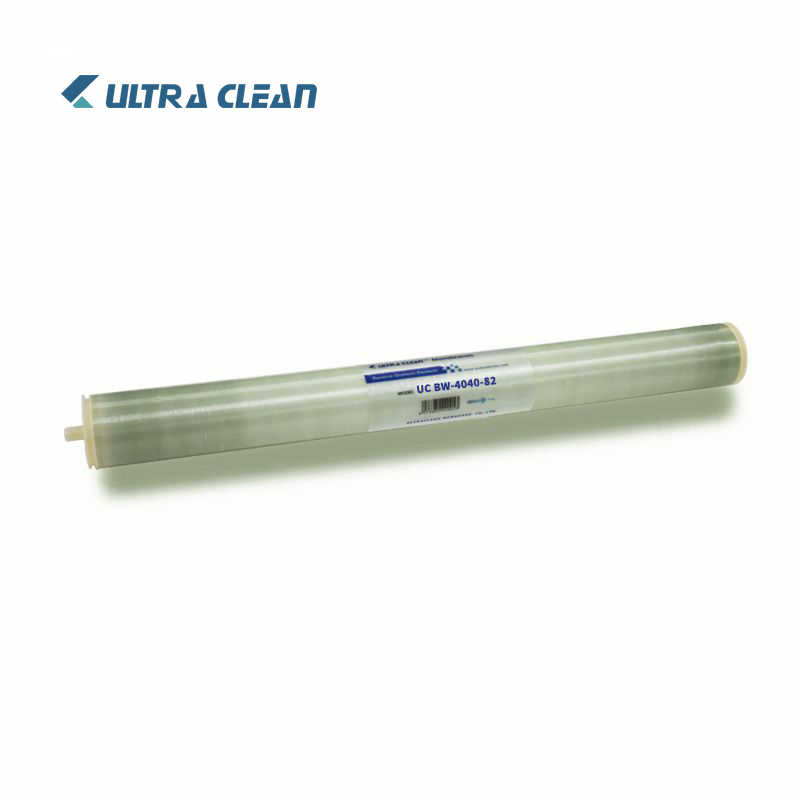

BWRO Membrane High Rejection Series BW-4040-82HR

BW RO membrane elements are mainly used for brackish water desalination. They provide excellent, stable and consistent membrane performance for industrial water treatment systems.

Product Description

UltraClean BW reverse osmosis membrane elements are primarily used for brackish water desalination, providing excellent, stable and consistent membrane performance for industrial water treatment systems. The element operates at low pressure, providing a more cost-effective option for industrial-grade applications. For more difficult dissolved salts, such as TOC, SiO2, etc., it has a high removal rate. It is suitable for near-zero discharge of wastewater in the petroleum and petrochemical industries and boiler feed water in thermal power plants.

Product Highlights

Stable performance and high rejection rate for organics

Low operating pressures, high flux and cost saving

Meet the demand for near zero discharge

Operating and Cleaning Limits

Maximum Operating Pressure41 bar (600 psi)
Maximum Operating Temperature45°C (113°F )
Maximum Element Pressure Drop1.0 bar (15psi)
pH Range Continuous Operation2-11
pH Range Short-Term Cleaning1-13
Maximum Feed SDI(SDI15)5.0
Free Chlorine Tolerance< 0.1 ppm

Notes

Permeate flow for individual elements may vary ±15 percent from the value specifed.

Active membrane area guaranteed ±4%.

Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.

Performance Specification

Effective Membrane Area
ft²(m²)
Stablized Rejection
Rate(%)
Minimum Rejection
rate(%)
Flux
gpd(m³/d)
82 (7.6)99.599.02050 (7.8)


Test conditions: inlet pressure 1.55 MPa (225 psi); inlet temperature 25°C (77°F); inlet water quality 2000ppm NaCl; inlet pH 8; recovery 15%.

FAQ

1.Are you a manufactuere or trading company?
We are 100% manufacturer of RO and NF membranes which could help you get products with best quality and price from factory directly.

2.Where is your company factory?
Our Production Headquarter located in New Material Industrial Park, High-tech Zone, Ankang City, Shaanxi Province. Besides, our marketing center is located in Tiancheng Building, Xiangcheng District, Suzhou city, Jiangsu Province. The second factory here is now under construction, will be finished next year, welcome to visit!

3.How is the quality of your products?
We promise three-years quality warranty and will implement it in the form of a contract.

4.Do you support sample order?
Yes, we always support free sample to help our clients check the quality, but we do not bear the shipping cost.

5.Do you support OEM?
Yes, we support OEM service and welcome you to customize our products.

6.How long time usually your products to ship?
15 to 30 days, depend on the distance.

BWRO Membrane High Rjection Series - BW4040-82HR
