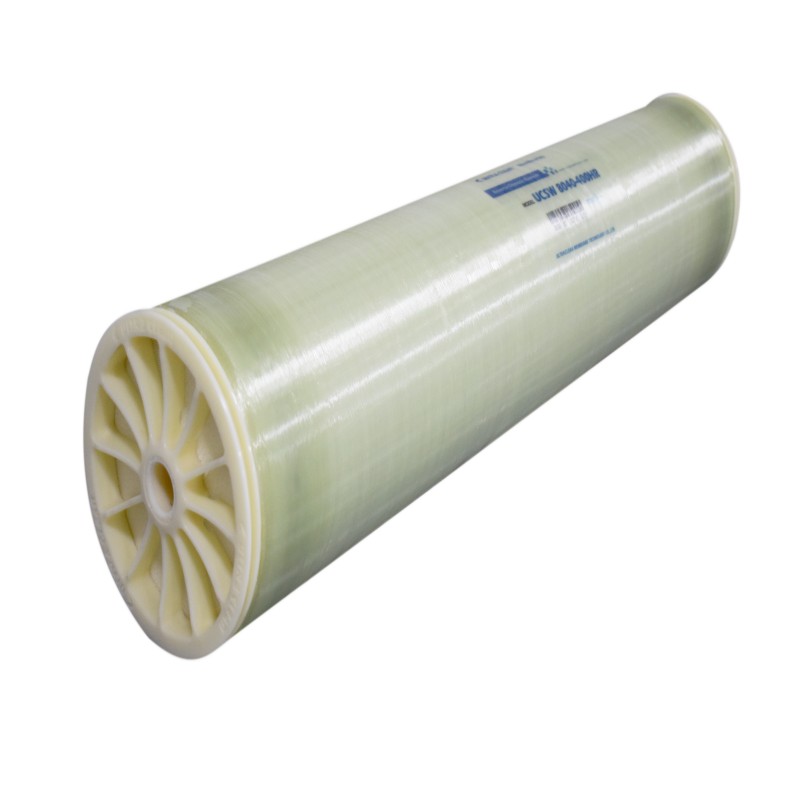

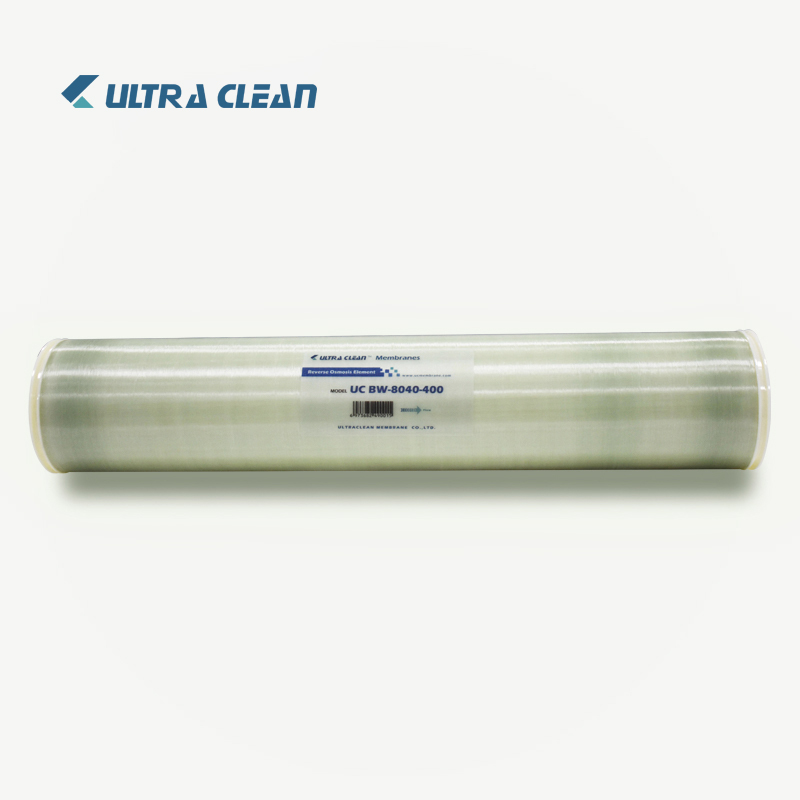

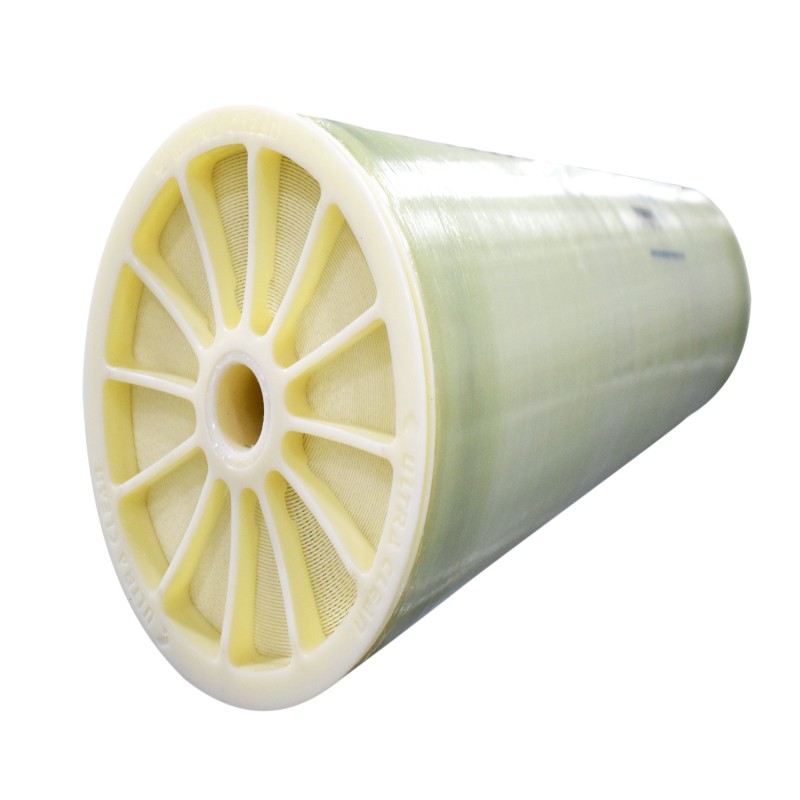

BW RO membrane elements are mainly used for brackish water desalination. They provide excellent, stable and consistent membrane performance for industrial water treatment systems. The element operates under low pressure providing a more cost effective alternative for industrial-grade water treatment applications. It has high rejection rate for dissolved salts that are difficult to remove, such as TOC, SiO2, etc., and therefore, applicable to near zero discharge for oil and petrochemical industry waste water treatment and feed water for thermal power plant boilers. These RO membranes are available in 4"and 8" sizes.
Advanced membrane technology with innovative thin layer composite membrane design.
More consistent performance with less fouling requiring less frequent cleaning and change-outs.
100% dry-stored membrane maximizing shelf life.
Membrane Performance Specification
|Active Area ft²（m²）||400（37）|
|Permeate Flow Rate GPD（m³/d）||10500（40）|
Stable performance and high rejection rate for organics
Low operating pressures, high flux and cost saving
Meet the demand for near zero discharge
About this item
HIGH QUALITY MEMBRANE：Features highest flow rates available to meet the water demands of both land and sea based desalinates, offering a high efficiency while providing a superior quality of water for your household or business to consume and enjoy.
FRESH TASTING WATER：The Reverse Osmosis Replacement Membrane cleans your water by removing heavy metals, inorganics and volatile organics and other harmful chemicals that produce distasteful and smelly odors.
● Pure water system
● Chemical RO filtration
● Desalination of brackish water
● Food and beverage wastewater
● Power plant boiler make-up water
● Medical reverse osmosis filtration system
The first full tank of permeate should be discarded, DO NOT use this initial permeate for drinking water or food preparation.
Keep membrane moist at all times after initial wetting.
To stop growth during prolonged system shutdowns, it is recommended that membrane elements be immersed in a preservative solution.
Operating and Cleaning Limits
|Maximum Operating Pressure||83 bar (1200 psi)|
|Maximum Operating Temperature||45°C (113°F )|
|Maximum Element Pressure Drop||1.0 bar (15psi)|
|pH Range Continuous Operation||2-11|
|pH Range Short-Term Cleaning||1-13|
|Maximum Feed SDI(SDI15)||5.0|
|Free Chlorine Tolerance||< 0.1 ppm|
|01||BW Series-Brackish Water RO Membranes UC BW-4040-82|
|02||BW Series-Brackish Water RO Membranes UC BW-4040-82FR|
|03||BW Series-Brackish Water RO Membranes UC BW-4040-82LE|
|04||BW Series-Brackish Water RO Membranes UC BW-4040-82XFR|
|05||BW Series-Brackish Water RO Membranes UC BW-4040-82XLE|
|06||BW Series-Brackish Water RO Membranes UC BW-8040-82HRFR|
|07||BW Series-Brackish Water RO Membranes UC BW-8040-400FR/34|
|08||BW Series-Brackish Water RO Membranes UC BW-8040-400FR|
|09||BW Series-Brackish Water RO Membranes UC BW-8040-400FRLE/34|
