BW RO membrane elements are mainly used for brackish water desalination. They provide excellent, stable and consistent membrane performance for industrial water treatment systems.
Product Description
UltraClean FR series reverse osmosis membrane elements have strong anti-scaling performance and anti-organic and microbial pollution performance. They are mainly used to treat water sources with high pollution tendency, such as printing and dyeing wastewater and industrial wastewater from thermal power plants. Through the special composite membrane preparation technology, the charge and smoothness of the membrane surface are changed, and the hydrophilic performance of the membrane surface is enhanced, thereby reducing the pollutants and microorganisms attached to the surface layer, thereby reducing the fouling rate of membrane elements and prolonging the membrane service life. The UltraClean FR series is available in 8-inch and 4-inch sizes.
Membrane Features
Advanced membrane technology with innovative thin layer composite membrane design.
More consistent performance with less fouling requiring less frequent cleaning and change-outs.
100% dry-stored membrane maximizing shelf life.

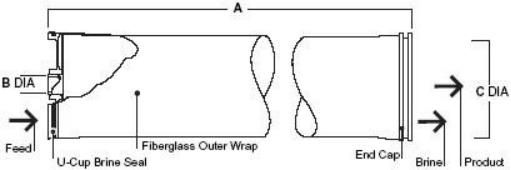

Membrane Specification
| A inch(mm) | B inch(mm) | C inch(mm) |
| 37.9 (963) | 0.75 (19) | 3.9 (99) |
Disclaimer
This product is a generic item that is designed to replace the original part.
Any brand names or logos are the registered trademarks of their respective owners.
Any use of any brand name or model designation for this product is made solely for purposes of demonstrating compatibility.
Performance Specification
| Effective Membrane Area ft²(m²) | Stablized Rejection Rate(%) | Minimum Rejection rate(%) | Flux gpd(m³/d) |
| 78 (7.2) | 99.5 | 99.0 | 2050 (7.8) |
Test conditions: inlet pressure 1.55 MPa (225 psi); inlet temperature 25°C (77°F); inlet water quality 2000ppm NaCl; inlet pH 8; recovery 15%.
