In the preparation process of UltraClean UC NF150 series nanofiltration membrane elements, a unique formula and process are used. It is specially developed and produced for the special solute concentration and separation process, with stable and reliable performance and strong anti-pollution.
In the preparation process of UltraClean UC NF150 series nanofiltration membrane elements, a unique formula and process are used. It is specially developed and produced for the special solute concentration and separation process, with stable and reliable performance and strong anti-pollution. It fills the blank range of molecular weight cutoff of existing nanofiltration membranes. It is suitable for separation of fine materials, removal of TOC and THM precursors, salt separation of monovalent and multivalent ions, decolorization, separation and concentration of small molecular organics, etc.
Advanced membrane technology with innovative thin layer composite membrane design.
More consistent performance with less fouling requiring less frequent cleaning and change-outs.
100% dry-stored membrane maximizing shelf life.
Membrane Performance Specification
|Effective Membrane Area|
1,610 (6.1) NaCI1,910 (7.2) MgSO4
Test conditions: inlet pressure 0.48 MPa (70 psi); inlet temperature 25°C (77°F); inlet water quality 2000ppm NaCl, 2,000 ppm MgSO4 inlet pH 8; recovery 15%.
This product is a generic item that is designed to replace the original part.
Any brand names or logos are the registered trademarks of their respective owners.
Any use of any brand name or model designation for this product is made solely for purposes of demonstrating compatibility.

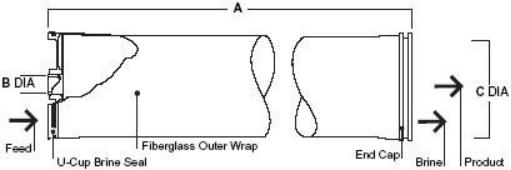

|A inch(mm)||B inch(mm)||C inch(mm)|
|37.9 (963)||0.75 (19)||3.9 (99)|
Operating and Cleaning Limits
|Maximum Operating Pressure||41 bar (600 psi)|
|Maximum Operating Temperature||45°C (113°F )|
|Maximum Element Pressure Drop||1.0 bar (15psi)|
|pH Range Continuous Operation||2-11|
|pH Range Short-Term Cleaning||1-13|
|Maximum Feed SDI(SDI15)||5.0|
|Free Chlorine Tolerance||< 0.1 ppm|
Permeate flow for individual elements may vary ±15 percent from the value specifed.
Active membrane area guaranteed ±4%.
Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.
